Replace Gravity/Fill Water RV Connection (Water Pump Dumps Water Through City Water Hose Connection)

My Gravity Fill/City Water Intake allows water to flow out of the City Water Intake check valve when I turn on the water pump to use the installed water tank.

A Google search identified the check valve installed in the water connection as the problem.

This is the part in question.



On the left is the Fresh water Tank Gravity Fill connection and on the right is the City Water connection.

The brass check valve is built into the brass city water connection

The little round eye at the bottom in the middle is the vent for the Fresh Water Fill.



As you can see all original steel screws are somewhat rusted and it is my habit to change steel square drive screws to stainless steel Phillips head screws.



This is the backside of the new Gravity Fill/City Water box I received. You can see the brass fitting that contains the brass check valve.

I ordered one identical to what I removed and it turned out later to be a VERY lucky move on my part.

The large hole on the right is a twist lock device for the tube that enters the water fill hose.



This is the front or out side of the new box.



The new box has a keyed lock instead of a twist close device.

I decided to go with that to prevent any unauthorized access to my Fresh Water.



There seemed to be TWO types of Gravity Fill/City Water Intake boxes out there.

And here is one difference, the tapered tube that goes into the water fill hose is not an integral part of the Gravity Fill/City Water Intake box (aka box).

This tube passes through the box from the outside and the tapered end fits into the water intake hose which is then clamped in place by a stainless steel hose clamp.

The tube then rotates in the mounting hole until it twist locks in place.

Note the locking tabs on the large (right) side of the taper tube.



When the box is removed all of the years worth of sealant will need to be cleaned off and screw holes inspected.

Not all screw holes may be reusable, plus some may be so close to the edge to be unusable.



The really bad news was, THERE WAS NO EXCESS HOSE OR PIPE AVAILABLE!

The instant the box was clear of the hull, that was the space you had to work in.

Everything at this point was difficult, disconnecting the city water connection, the vent and the fill hose.

On the other hand, the disconnection was so much easier than the re-connection.

Inside the hull was an area bout the size a large pair of boots would fit into.

But there was NO PLAY in anything.

Two inches extra length would have allowed  my hands to fit.

The vent and water lines were basically a very stiff type of (I think) PEX pipe which is very stiff.

However, I had no problem reattaching the vent and city water lines.

The taper tube and the water inlet hose for the water tank were the problem. I could not put pressure holding the taper tube into the water hose while screwing the hose clamp tight.

II had it once but when I attempted to twist lock the
taper tube into the box mount the fill hose came loose from the taper tube.

I solved the problem by first connecting the taper tube into the fill hose with the box rotated clockwise so that it pointed to about the 4 o'clock position. Then I managed to get the hose up the taper tube and very care fully tighten the hose clamp.

Then I slowly twisted the box  counterclockwise to twist lock the taper tube.

After that I carefully connected the vent and then the city water hose connection (left to right).

It was a pain in the &^*



Next, I filled the fresh water tank so I could run the water pump to check proper operation of the City Water connection check valve as well as checking each connection and or joint for leakage.


Then I re-installed the box into the RV hull. On the left side there were two screw holes that time had got the better of. I put screw back in after placing some toothpicks in the holes. However, you can see that I also added three new screws on the left side.

Before installing the box, I placed a strip of Butyl caulking tape around the outside edge of the box to keep water out of the RV.

I also placed the Fresh Water warning label inside the box.

Finished.




Tuesday, September 26, 2017

2002 model Dometic BriskAir AC Repair on Fifth Wheel

CAUTION
ENSURE ALL POWER IS REMOVED FROM THE UNIT
THE AC UNIT OPERATES OFF 120 VOLT SHORE POWER
CAPACITORS CAN HOLD A HIGH VOLTAGE CHARGE WHEN POWER IS SECURED
FOR YOUR SAFETY, YOU MUST DISCHARGE ALL CAPACITORS BEFORE HANDLING
THIS INCLUDES NEW ONES YOU JUST PURCHASED



The fan capacitor located in the roof unit has died.


The interior of the roof unit, the capacitor box is located to the right at the forward end of the unit,


The wiring connections of the FAN capacitor that needs replacement. The contacts are marked: Fan- 1 Black Wire, Herm-2 Red Wires, Common-4 White Wires.


This is the business end of the Hard Start Capacitor Kit which I also replaced on general principles as the red cable insulation was charred somewhat at the connector.


Identification of Dometic Hard Start Kit


The new Hard Start Kit, it came as a unit


This is not a Dometic part, they want about $60 for theirs. The original was labeled 35/5uf, 370 volts, protected 10,000 and I upgraded to a 35/5 uf, 440 volt capacitor, protected 10,000 and with all other parameters matching or exceeded for about $12

A main concern was to ensure that the capacitor I ordered fit in the capacitor box and leave room to connect the wiring


Info on the replacement capacitor that I ordered


Installation, other than climbing on and off the roof of the fifth wheel was relatively easy

I started the ac unit before I sealed up the capacitor box and the fan started like it should

I tried to see if it was cool air, but then I thought I might need to cover buttoned up for proper airflow

It is working, but the outside temperature is in the low-mid 90s



Sunday, June 04, 2017

RV Water Leak, Inside Coach and Nose Cap


Last weekend, we camped in Bushnell, FL and it rained. It rained inches of water. My first indication of an Ohh Oooooooo was water on the floor by the kitchen drawers. I found the water coming down the grey water tank vent and then dripping down the front of the refrigerator and puddling on the floor. a towel was strategically placed to prevent damage (soak up water).

The next morning while working under the nose cap I realized water was dripping on me from an area where no water should be. Pushing on the underside of the nose piece revealed water in the nose piece. I tried reaching in through the hitch but no luck. I then drilled three holes to let the water out, but I did not get a free flow until I made the drilled hole 1/4 inch. I have to thank my SweetheartFace for the suggestion to use a larger drill bit.

So now we are moored alongside our quarters and roof maintenance has begun. Between 95 degree days, and parts runs to Revels Nationwide RV Accessory, Starke, FL. this job could go on for ever!


One of my favorite tools for working on my RV. The screws that were factory installed are square drive steel. Since I find many that were badly rusted, I change them out for a slightly larger stainless steel Phillips screw. If you set them with a power driver, I recommend final tightening with a manual screwdriver.


 At this point, I have already removed all of the old Dicor sealant from the seam. Some previous owner had also used some form of silicone sealant on the seams leading edge, between the seam and the fiberglass nose piece. Never use silicone sealant on your RV. Since I have a rubber roof membrane, I always use Dicor sealants. I have started laying the Dicor Lap Sealant from the far side.

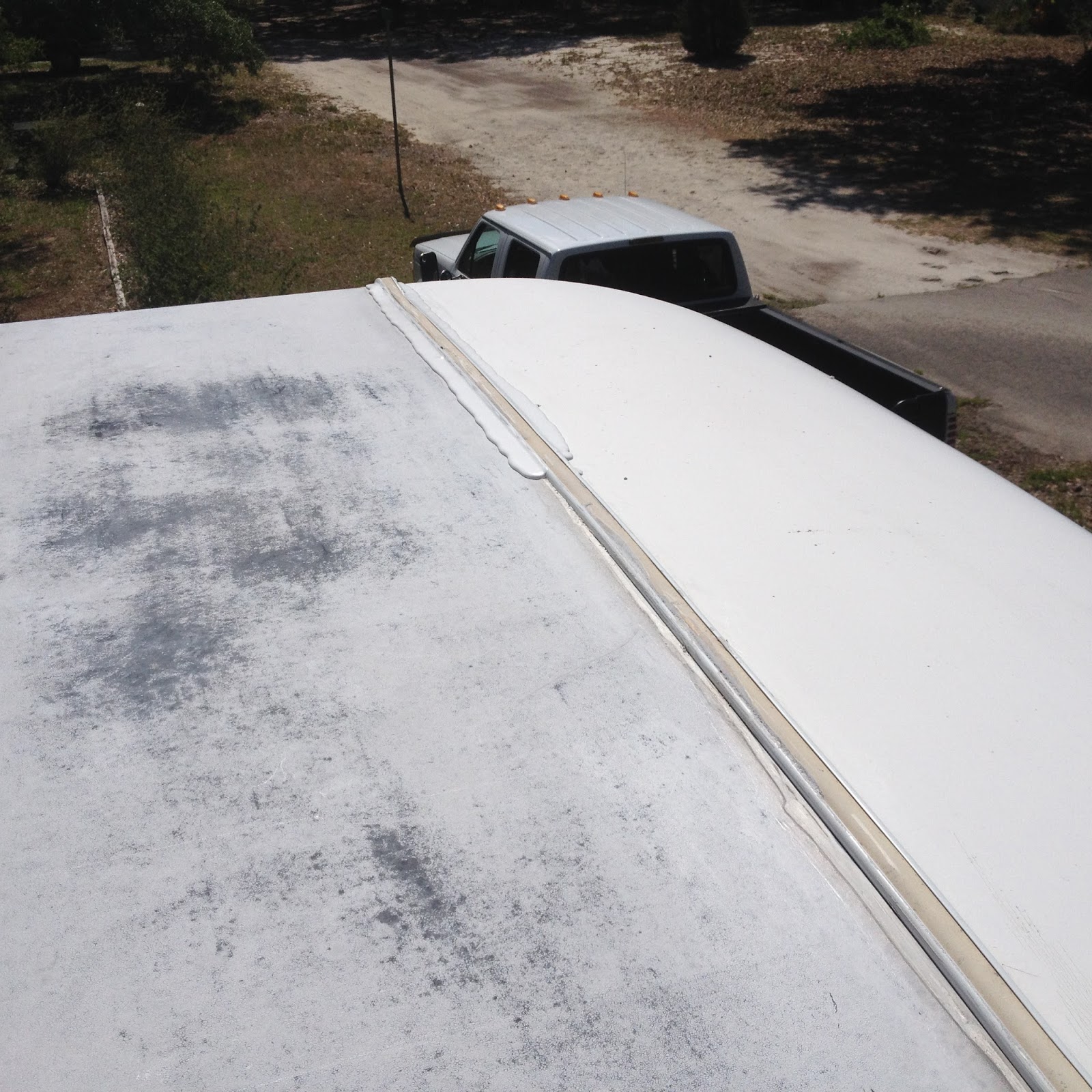

At the back of the picture there is a small dent in the roof and the seam, With the Dicor in the shape it was in, that would make an excellent place for water to pool and seep into the nose cap. Since I will never know exactly how the water entered I must seal every possible avenue that water could flow or seep.


 A close up of the seam on the near side, cleaned and waiting for the Dicor.


The right side edge where the roof rolls over to become the right side of the RV. I intend to cover the entire seam with 6 inch EternaSeam tape but that will be done later after I have repaired all possible roof leaks.


I use a battery operated caulking gun made by Ryobi. It was relatively inexpensive and uses the same batteries as my drill. You have to manually take the pressure off the caulking tube but you can set the speed for expelling the caulking with a switch on the gun. I am not one who can regulate flow in a manually operated caulking gun; I have a hard enough time with this one. Also, when running a bead you can not see behind you. When you hit an obstacle it is reflected in the bead.


 Roof looking back, the roof on this rig is 15 years old. When all repairs are made, I will paint the roof with Pro Guard Liquid Roof.


Two vents and the refrigerator roof vent to replace. The vent in the middle is the one the water appeared to flow down into the coach, but the Dicor around that vent appears to be in good health. However, the refrigerator vent on the left of the picture is holed on the front left side and may have allowed water to leak in. Once water is in, it finds it's own path to flow.


Having your own Northern Tool scaffolding makes working on the top of a fifth wheel much easier and a lot less scary for an old guy. It has wheels and outriggers and is easily rolled around to where it is needed.


The Dicor on the right side (nose piece) was laid down first. This Dicor is self leveling so it flows some and levels itself out. However, the self leveling Dicor can NOT be used on the vertical surface. I stopped at this point to allow the Dicor to level out. Hopefully if it rains before I am done, the water on the vertical side will fall to the ground. Eventually, this seam will be covered from end to end with EternaSeam.



Forward drivers  side of nose cap rubber roof joint completed.



This is the base of the refrigerator vent that I removed.. When I started there was a dime sized hole in the front left side of the base. The base is obviously dry rotted from the sun. The vent base is mounted on a slanted portion of the roof where water could pile up while draining down the roof and flowing around the vent base.


The cover, which has been previously replaced is also in need of replacement. If you buy the cover and base at the same time, you can be sure they will go together properly. All you have to do is make sure the base, regardless of make, covers the refrigerator vent hole.

Mastic and Dicor held the base in place. When you see this gray mastic, it means you are going to be doing some real WORK. removing whatever is held down by the gray mastic. The knife is used to cut into the Dicor and also the gray mastic. The outer white looking ring or line around the edge is where Dicor was removed. You can see the gray mastic has pulls everywhere in it. It pulls like some horrible taffy.

Be very careful, the knife I use has no sharp edge, it is closer to a butter knife than a steak knife. You are trying to remove Dicor from your roof membrane. The gray mastic is also attached to the roof membrane.

I try to cut the Dicor at a very slight angle and I do not try to get it all off. I cut off the large lumps and move on.



The cleaned area around where the refrigerator vent base will be mounted.

After I have cut or pulled off as much trash as possible, I put mineral spirits on a rag and wipe both the gray mastic and the old Dicor with my rag. Then wipe off all mineral spirits with a clean rag.

Do NOT pour mineral spirits on a rubber membrane roof, use only a minimum of mineral spirits.


A closeup of a prepared corner area before taping.


Quick Roof Extreme (QRE) 4 inch tape around the refrigerator vent hole. While removing the old vent base, I did manage to cut some of the roof membrane. This tape goes from the inside of the access hole out 4 inches and is laid over the gray mastic and the old Dicor after wiping them clean with mineral spirits. The tape was then rolled using a large 1 inch socket o apply pressure as well as my hands.

Information on Quick Roof Extreme:  http://cofair.com/quickroofextreme.aspx


A closeup of a cleaned and prepared corner for the refrigerator vent.


The refrigerator vent base installed with putty tape under the vent base and Dicor lap sealant over outside seams and screw heads. Pictures with a blue cast were taken in the evening when the sun was low in the West.


Replacement vent cover in place overnight to protect against rain.


I cut three strips of QRE and placed one on each side of the vent pipe. The third strip was cut out to fit closely over the vent pipe. The new vent was mounted with putty tape under the base and screwed down with stainless steel screws. Each seam was covered with Dicor lap sealant.


A couple years ago, I replaced the vent caps with this style. I did not like them and all of them were destroyed over time.


This one is ready to disassemble. The attaching screws are under the base plate and screw the outer cover to the vent tube.



Using my knife to remove Dicor sealant. I always try to cut towards the vent tube with the knife blade as close to parallel with the surface as I can. My goal is to remove as much old sealant as I can.


One hand holds the knife and I apply pressure with the fingers of my other hand. Cut in towards the pipe carefully, do not cut the rubber roof membrane.


There may or may not be putty or sealant under the base being removed. I use, my knife, putty knife and often paint stirring sticks to hold the base above the sticky putty, mastic or sealant underneath.


Prepared to remove the tan upright pipe from the vent tube. You will have to remove ant sealant from the side of the pipe to locate any screws. DO NOT put a lot of torque on the vent pipe, you will not be happy if it breaks inside the camper walls.


Screw location where pipe and roof come together. In this case there were three screws.


Dicor lap sealant in place on all refrigerator QRE vent tape seams.


Last grey water vent completed with Dicor lap sealant on all QRE tape seams.


From this viewpoint, looking forward, I have completed three tank vents completed and have sealed the nose piece/rubber roof joint.


Today's roof working costume for playing in the sun. Exposed areas are covered with judicious amounts Ocean Potion. I started using Ocean Potion years ago while working on the various police firearms ranges. Ocean Potion does not run into your eyes when you sweat. I put it on in the morning as soon as I dry from the shower. while you are still damp. Then dress and by the time you arrive at the range it will not run when you sweat. Skip the shaving, it stings a little on a fresh shave. I carefully wipe off  any on my lips or the palms of my hands and fingers.


Roof brackets are next.



Cut off all old Dicor lap sealant.



Inspect screws holding bracket in place and tighten as required.


Lightly wipe surrounding are with Mineral Spirits on a rag. I am going to place QRE tape around the mount to strengthen the rubber roof. So make sure you wipe off an area large enough for the tape used.


On each side of the mount, fore and aft I placed a two inch strip of QRE about six inches long parallel to each other. Then in the other direction I place two 4 inch strips each about six inches long. I rolled them and then applied Dicor lap sealant over the mount and all seams and edges of the tape.



Aft mount.



Forward mount



Both mounts on the right (door) side of the RV. The tape fore and aft was cut at a two inch width to keep the Dicor self leveling lap sealant away from the vertical side of the RV.


TV antenna


TV antenna with all old Dicor removed, wiped clean with mineral spirits and ready to apply QFR and Dicor self leveling lap sealant.


TV antenna as completed.


Bummer, it has rained and more water appears to be dripping out of the nose cap. I looked over everything and I am sure the water is NOT coming from the rubber roof nose cap joint. The trailer clearance lights along the top of the nose cap lenses are somewhat cracked and some of the lights appear to have water in them. I have more on order, but the supply place is waiting for their supplier.


Tail cap rubber roof joint on passenger side also in need of upgrade


Same joint as above on the drivers side.


End cap rubber roof joint across RV.


Scaffold set up. Damn good investment if you need to do your own work. This is much easier than hanging off a ladder.


Leg brace very close to end cap rubber roof joint which led to a lot of extra taping. Even though I used the EternaSeam on the forward joint, I switched to QRF tape as it was much easier to work with.

Rear end cap rubber roof  seam. I am preparing to tape the corner. On the vertical I used Dicor no sag lap sealant and I tried the trick of smoothing the sealant with a finger dipped in a mixture of Dawn soap and water to mold the sealant.


This view lets you see some of the taping. I tried to put the 4 inch tape on the end cap fiberglass side first and then let the tape fall over the seam. Then I went back on the rubber roof side ond again let the 4 inch tape fall over the seam.

Regardless of the tape used, 4 inch or six inch, either brand, the tape locked itself together and formed the ears shown here. Directions say do NOT stretch the tape!!!!


I took a pair of scissors I had in the freezer, wiped the blade with mineral spirits and the cut the ears off as close as possible.


This is a caulking gun I made from a fuel oil mixer I found at WalMart. I needed a short, one hand lightweight caulking tool for the Dicor no sag sealant.


It had a ring on the top that broke off so I ground the stub off by rubbing it against the concrete driveway.


Pax side rear complete.

Drivers side rear complete. At this point, all of my really bad Dicor joints have been resolved so I have to now start sealing the joints on the side of the RV. I also have ordered and am awaiting shipment for all new LED clearance lights. I think some of the water in the nose cap area is coming from either a side joint or a clearance light.

When I started this particular adventure I thought it might run into two weeks. It has now been over three weeks but I know the roof is secure. later I will go back up and tape around the roof vent covers and do the remaining brackets.

Then I plan to change the air conditioner gasket and perhaps the air conditioner before painting the entire roof with EPDM rubber roof paint

More adventures to follow.
